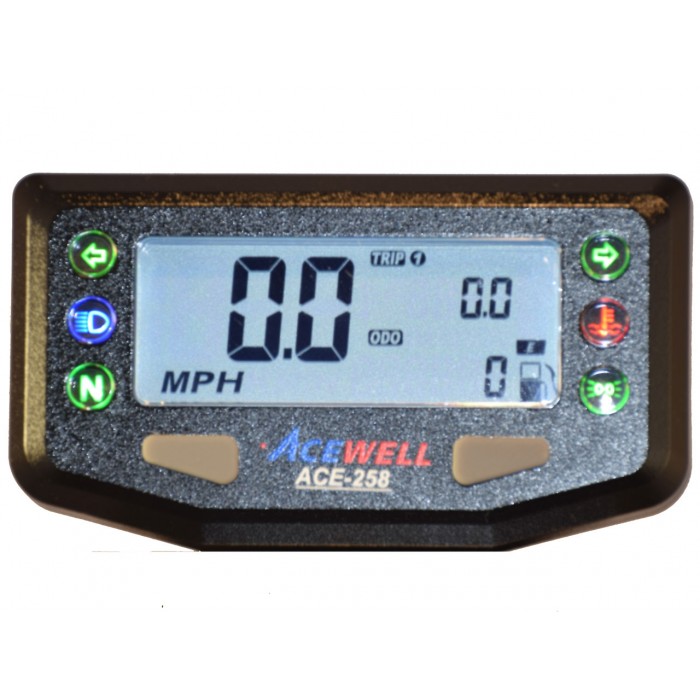

Ace 258 Digital Speedo

  • £91.99


Average Review Rating

0 reviews

Acewell Ace 258 digital speedometer, hours meter & fuel gauge, with built in warning lights. All units come with full instructions & wiring diagram.

Small, tough and waterproof multifunction computer.
Multifunctions packed into a neat package
Perfect for road registered motocross, enduro and supermoto bikes, quads, and streetfigher conversions.
Modes: MPH, KM/H, ODO, TRIP, HRT, HRTT, RT, TT, CLOCK, MAX SPEED

The Ace 258 is an entry level speedo, primarily aimed at the quad market, giving you everything you need, with regard to speedometer & dash functions, for the MSVA test.

Positive switching Negative Switching LCD symbols

Features:-

  • Digial Speed Readout (SPD)
  • Maximum Speed Display (MAX SPD)
  • Average Speed Display (AVG)
  • Odometer (ODO)
  • Trip Meter
  • Clock
  • Resettable Riding Timer (RT)
  • Non-resettable Riding Timer (TT)
  • Warning Lamps
  • Warning Symbols Backlit
  • Bar Chart Fuel Gauge
  • Backlight
  • Waterproof Computer
  • Waterproof Multipin Plugs
  • Plastic Case
  • Enter Odometer Reading When New
  • EMI/EMS Tested CE And E-Marked
  • Vibration (8G) And Mechanical Shock (100G) Tested.

Specification

Digial Speed Readout (SPD) 0 - 248MPH / 400Km/h
Maximum Speed Display (MAX SPD) 0 - 248MPH / 400Km/h
Average Speed Display (AVG) 0 - 248MPH / 400Km/h
Max Speed Sensor Input Frequency 100Hz (reed sensor / hall sensor / cable drive speedo only)
Odometer (ODO) 0-999,999 km / 0-624,999 miles
Trip Meter 2 trips, 0-999 km / 0-625 miles
Clock 12 / 24 hour clock, also displayed when ignition is off
Resettable Riding Timer (RT) 0 - 99h 59min 59sec
Non-resettable Riding Timer (TT) 0 - 9999h 59min
Warning Lamps 6
Operating Power 12v (DC, Negative earth)
Bar Chart Fuel Gauge Input Resistance off or +/- 100 / 250 / 510 ohm
Backlight White backlight
Connector Plugs 090 series
Plastic Case Dimensions 96 x 53 x 24mm
Case black / silver plastic
Power On ignition key
Enter Odometer Reading When New version 1 no, version 2 yes
Compatible Wheel Size 1-3999mm

Included with the unit:

  • Head unit
  • Mounting Bracket: ACE-Y Stainless steel bracket
  • Mounting Kit: stainless steel nuts, washers, anti vibration washers
  • Speed Sensor: Reed sensor or hall sensor options
  • Mating multipin plugs and cables to solder / crimp into bike wiring (pigtails)
  • Operating Instructions
  • Wiring diagram
